L509 Cabinet Light – Ultra‑Low Surface-Mount LED Light

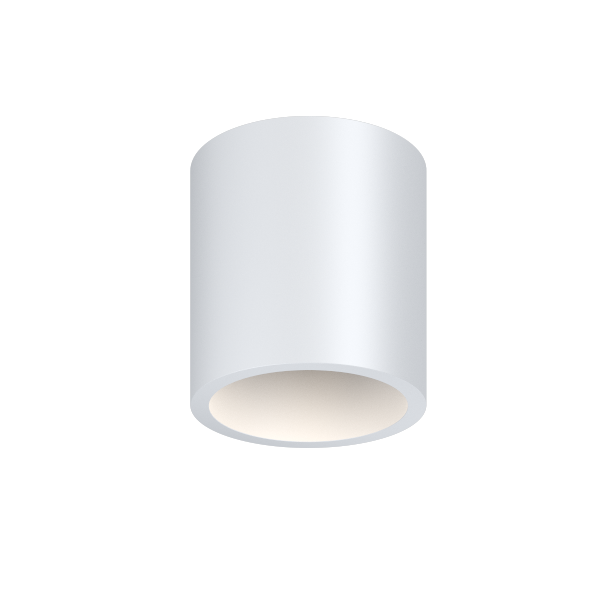

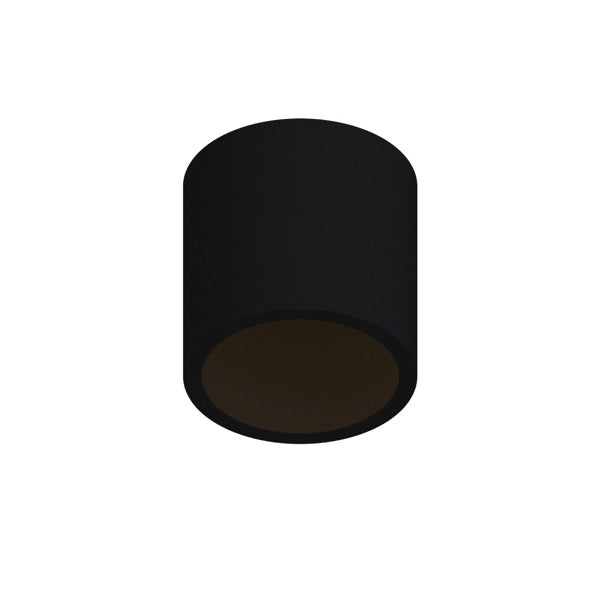

The L509 Cabinet Light is a sleek, ultra-low-profile LED luminaire ideal for cabinet interiors, shelving, display niches, or low-level corridor lighting. With a slim stainless-steel bezel, spring-clip installation and frosted tempered glass diffuser, it delivers discreet, engaging illumination.
Available in 1 W or 2 W high-efficiency LED versions, each delivering approximately 70 lm or 130 lm respectively. Outputs are recessed, with a range of beam angles (12°, 30°, 45°) for precise accent lighting.
Key Features:
- Ultra‑low profile stainless-steel bezel for discreet mounting
- Choice of 1 W or 2 W LEDs delivering ~70 lm (1 W) or ~130 lm (2 W)
- Multiple beam angles: spot (12°), narrow flood (30°), flood (45°)
- Frosted tempered glass diffuser for even, glare-free illumination
- Easy installation: fitted with spring clips, suitable for dry locations (IP40)
- Built for specification: die‑formed stainless-steel body, tamper-resistant screws, cETLus listed
Technical Specification:
| Power Consumption | 1 W (350 mA – ~110 lm in; ~70 lm delivered) 2 W (700 mA – ~220 lm in; ~130 lm delivered) |
| Beam Angles | 12° / 30° / 45° options |
| Materials & Finish | Satin or clear anodised stainless steel housing with frosted tempered glass |

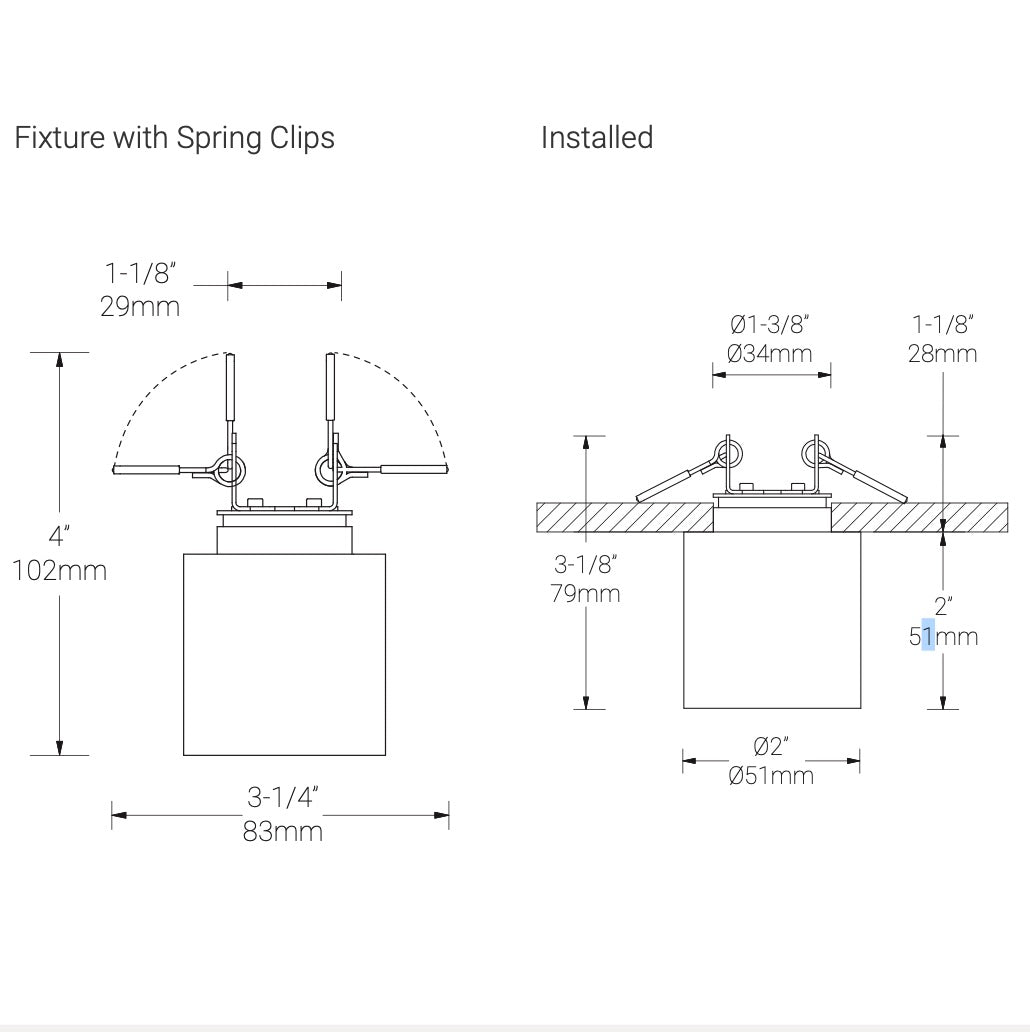

| Installation | Spring-clip recessed mount; suitable for panel thickness 8–12 mm (consult installer) |
| Certification | cETLus listed for dry locations (IP40) |
| Delivery | 2–3 weeks from order confirmation |
